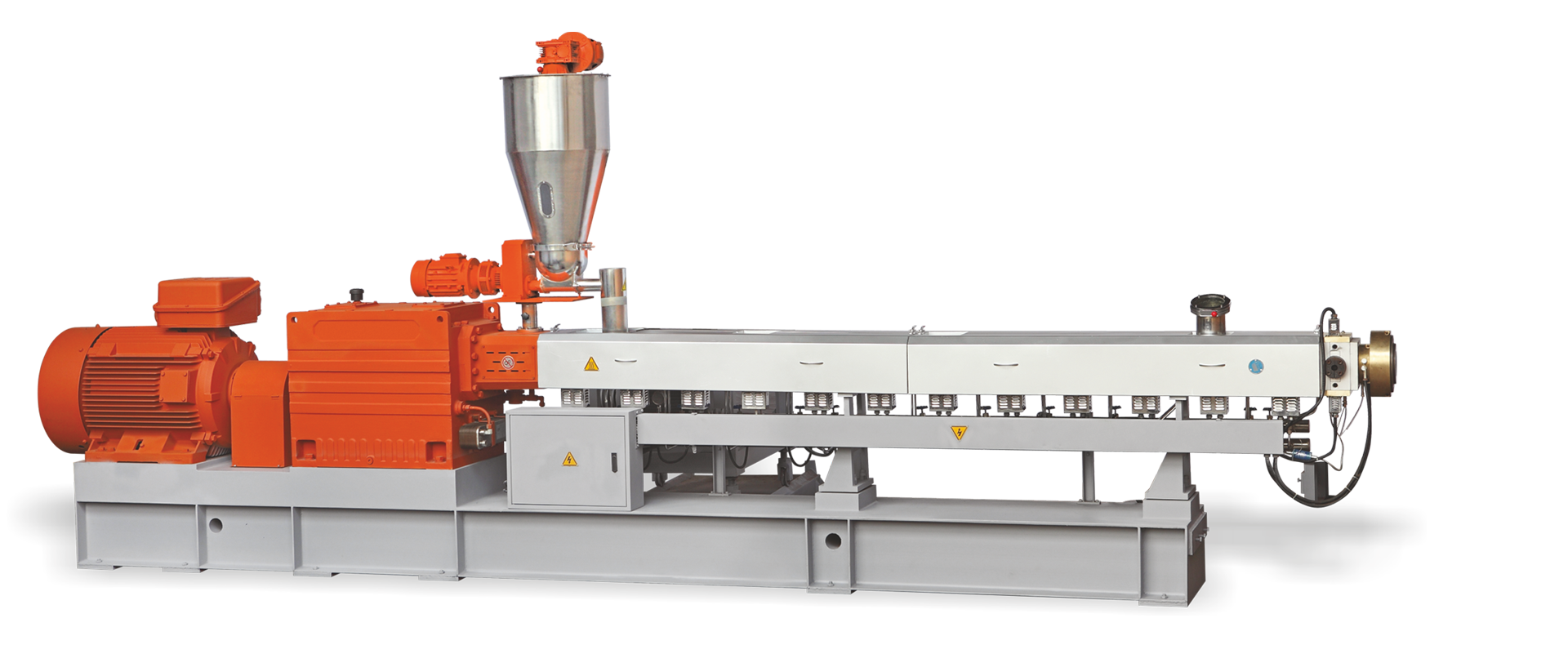

Co-Rotating Twin Screw Extruder

  • The most versatile machine for Compounding, Masterbatch, Engineering Polymer and any type of polymer to be processed with most of the formulation.
  • Intermeshing Segmented Screw and Modular barrels makes it more flexible to process various polymers
  • Multiple Feeding option by using Volumetric Feeder, Loss in weight Feeder, and forced side feeder can be plugged easily to process special additives, Glass Fiber , etc..
  • Specially selected High Quality and High Torque Gear box used for longer life.
  • Higher number of Heating and Cooling Zones makes it more precise temperature Controlled processing
  • Screw & Barrel are made up of special alloy steel for longer life.
  • Strand Cutting/Air Ring Die Face and Water Ring Die face cutting is available
  • Natural Vent & Vaccum Pump removes the impurity from the material and enhances the quality for end use.

Description LTSE-25 LTSE-35 LTSE-40 LTSE-50 LTSE-65 LTSE-75 LTSE-95
Screw Diameter (mm) 26 31 40 50.5 62.4 71 92
Screw Intermesh 1.55
L/D Ratio 36-60
Power (Kw) 7.5-11 18-30 37-55 45-75 55-90 110-250 315-400
Max. Screw RPM 600-800
Output (kg./hr) 5-40 60-100 100-200 150-250 200-450 400-1000 600-1500
